Commodore Dawn A1150/G22

Depth: 300 cm
Commodore Dawn is a fusion of classic Isabella design and contemporary materials. Its depth of 3 metres and the choice of three types of frames are a major advantage, especially for those who alternate between permanent pitching and touring..

See more about the Commodore Dawn series

Number

124611509

Special Details

Intergrated top ventilation, Mosquito net in both sides


Removable/foldable parts

Front and side panels

Curtains

Collage Sand

Collection

Dawn

Recommended For

Permanent, All Seasons

  • Curtains
  • Veranda pole
  • Draught skirt
  • Wheel arch cover
  • FixOn
  • Typhoon storm sashes awning bag
  • Pole and peg bag including peg remover.

In doubt about which type of frame to choose? Look under Tips & Tricks in the top menu.

Frame options

Strong Zinox tubular steel frame with T-Rex locking clamp
CarbonX fibreglass frame with IsaFix locking clamp
Zinox Megaframe tubular steel frame 32mm diameter with welded corners and double screw locking.

Roof fabric

Isaroof 285 g/m2 - Ultra-durable UV-resistant polyester textile, treated with three layers of breathable acrylic.

Base Material

PVC 380 g/m2

Side/Tent Material

Isacryl 295 g/m2 - particularly breathable material

Colours

Steel
Flax

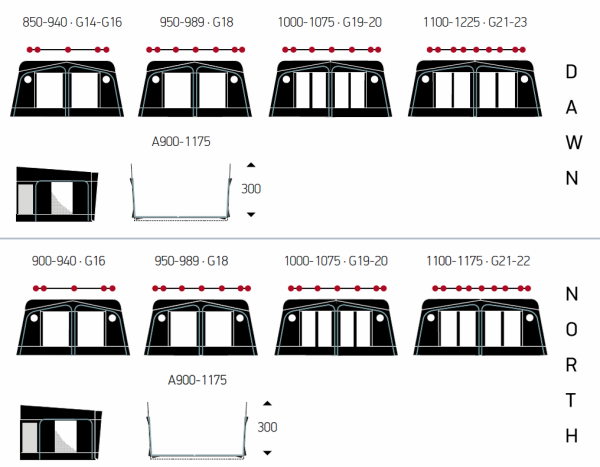

Front & side illustration

Figures: Covers A-measurement from-to (cm) Price group (G)
Red dots: No. of rafter poles.
Dotted outline: Zip for removable and fold-down panels.
Cross-hatched windows: Ventilation net with foil cover.


Base drawing

Dotted outline: Canopy.
Triangles: Door openings.


Depth (cm)

300


A-Measure

1150


G-Measure

G22


Weight incl CarbonX / IXL (kg)

56,91


Weight incl Zinox / Prenox (kg)

73,01


Weight incl MegaFrame (kg)

95,71


NetWeight

33.11


Opstillingsvejledning

Build-up video

Maintenance Advice

TIPS FOR MAINTENANCE

Vacuum or brush awning off when it is dry. Subsequently, wipe with a damp cloth.

Windows can occasionally be sprayed with Aquatex reproofer, and then immediately wiped with a dry cloth (max. twice a year).

For larger cleaning, IsaClean can be used. Aquatex should be used afterwards for reproofing.




Commodore Dawn

Commodore is a fusion of classic Isabella design and contemporary materials. Its depth of 3 metres and the choice of three types of frames are a major advantage, especially for those who alternate between permanent pitching and touring and enjoy having plenty of space in the awning. Large panoramic windows make Commodore a pleasant place to be, with a unique inflow of light.
